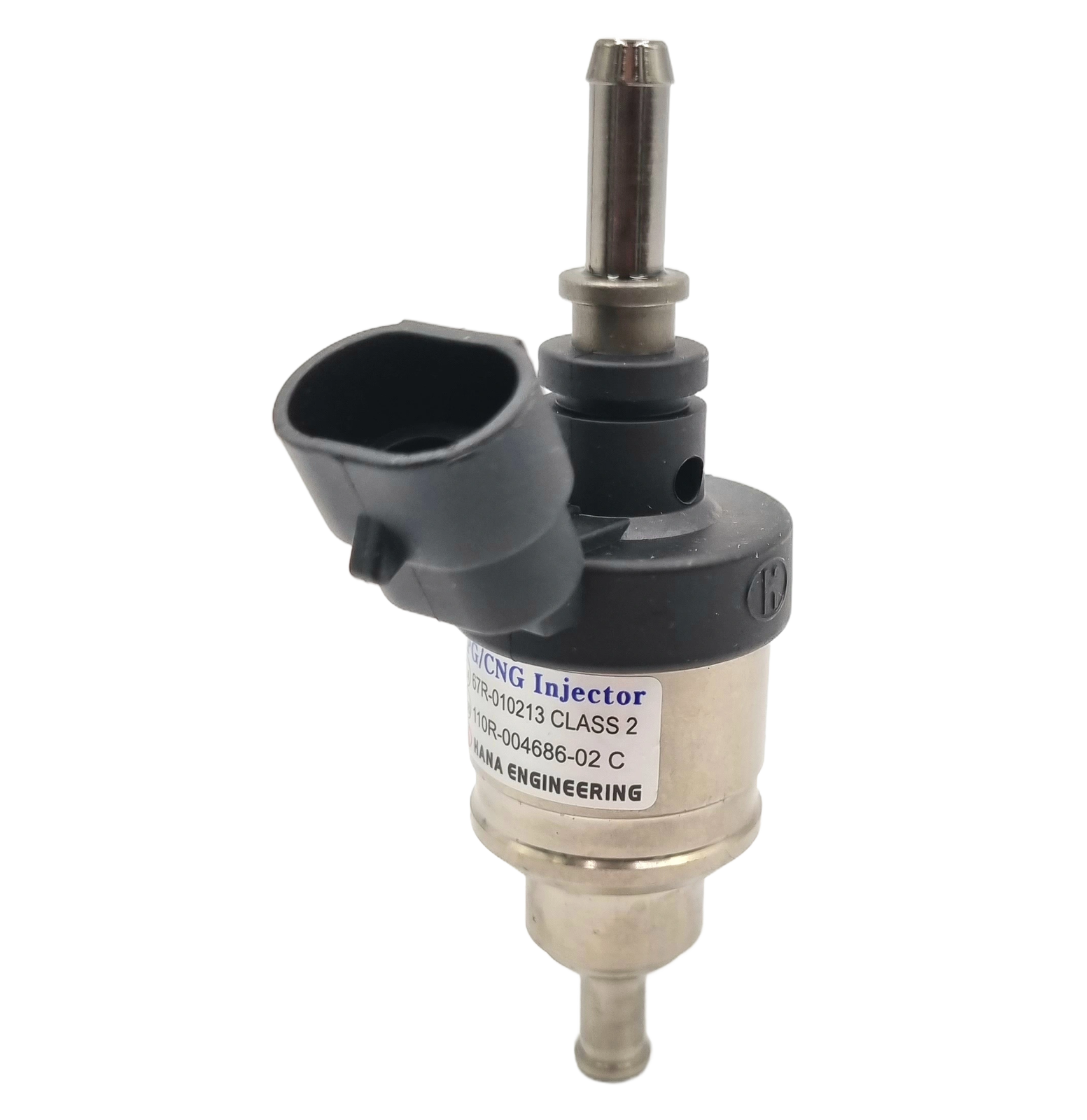

HANA LPG injector 1cyl H2001 BLUE spigot

HANA H2001 blue in 1 cylinder version with stub, the injector, thanks to its simple and proven design, is characterized by high resistance to contaminants present in LPG gas. The injector is designed for automotive LPG sequential gas injection systems.

Technical data:

• Maximum output: 60 hp/cyl.
• Coil resistance: 1.3 Ohms
• Voltage: 12V DC
• Opening time: 2.0 ms
• Closing time: 1.2 ms
• Maximum operating pressure: 4.0 bar
• Input spigot: 6 mm
• Output spigot: 6 mm
• Plug: Superseal / Valtek
• Operating temperature: -40 ÷ 120°C
