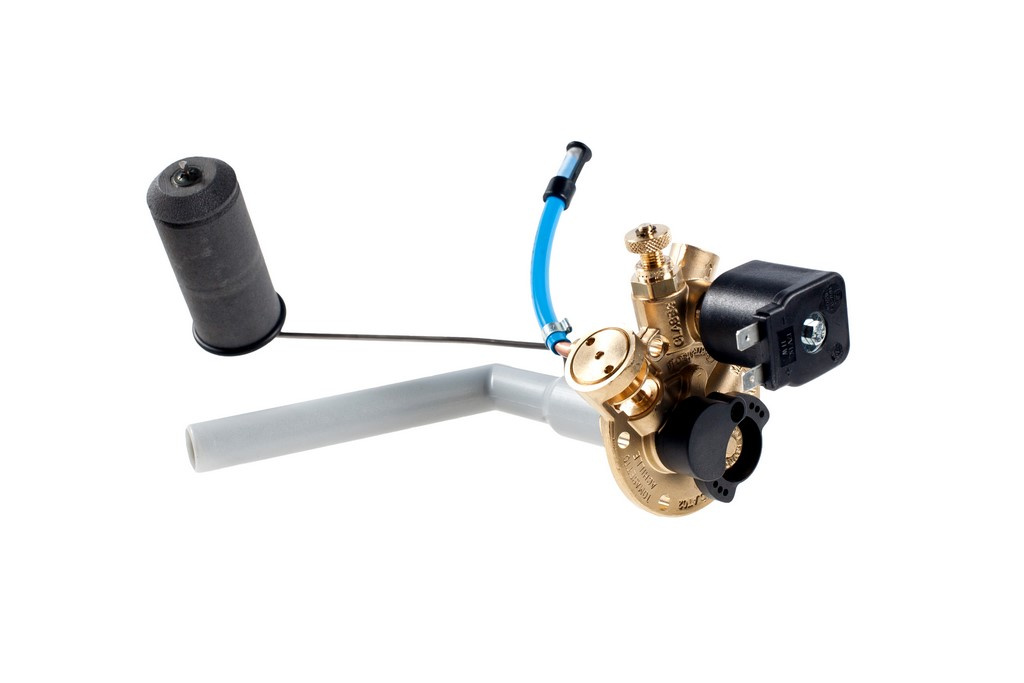

Tomasetto toroidal multivalve 180/190 30

Toroidal tank multi-valve 180/190mm 30º MVAT0A12 TOMASETTO

APPLICATIONS:

Allows safe refueling by reducing the possibility of filling too much gas into the tank.

Designed for installation in toroidal tanks in place of the spare wheel with a height of 180 mm or 190 mm and with a 30º slope of the multivalve flange.

Technical data:

• Input (refueling) pipe diameter: 8 mm (M12X1)
• Diameter of the output pipe (to the reducer): 6 mm (M10X1)
• Coil voltage: 12V DC
• Coil power: 11W
• Automatic refueling cutoff: 80%
• Refueling: 18 l/min at 10bar pressure

Kit contents:

• Toroidal multivalve 180/190mm - 1 piece
• Electrical cable - 1 kpl
• Mounting accessories - 1 pc
