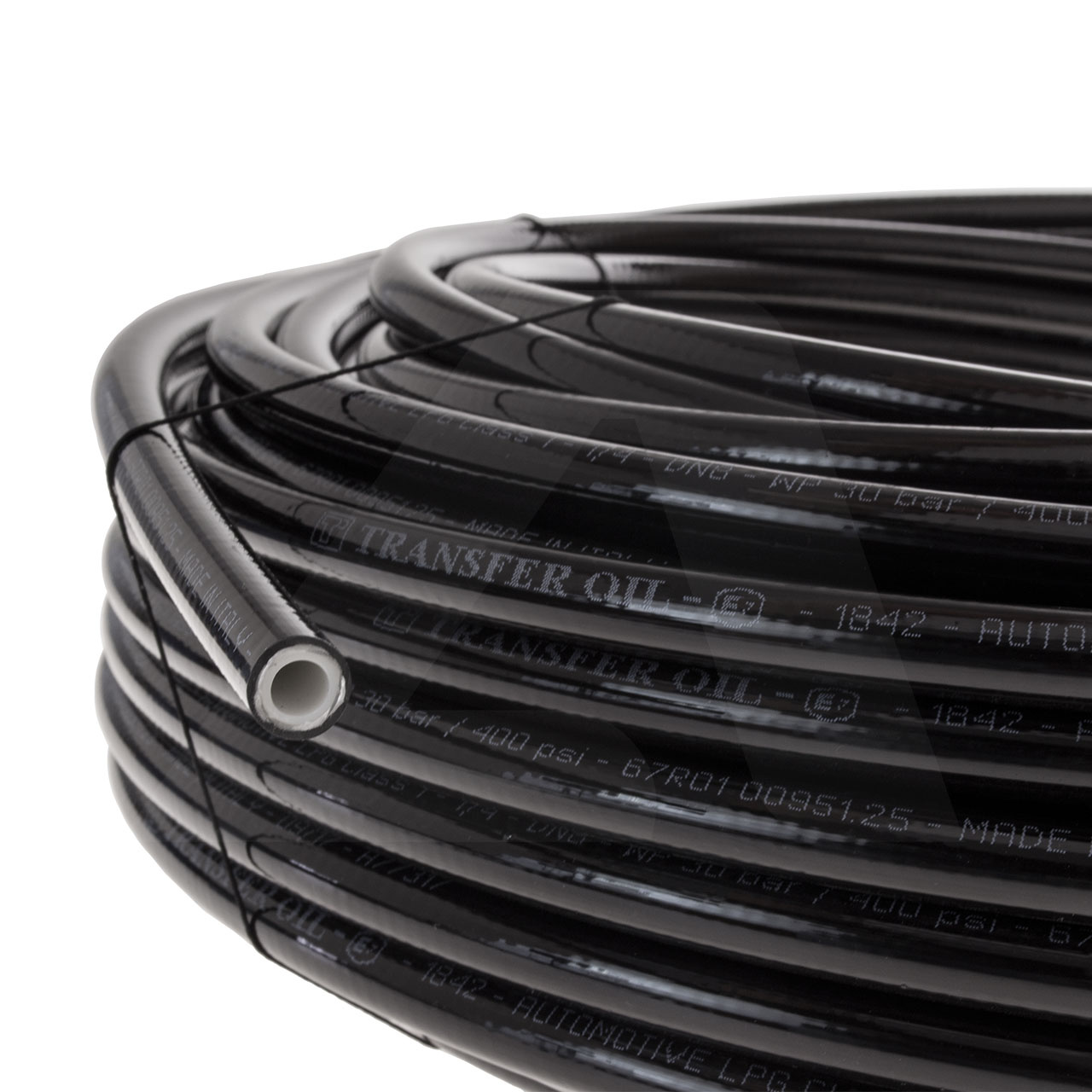

Thermoplastic PVC Transfer Oil pipe DN6 6mm meters

TRANSFER OIL

Hose used in LPG systems to bring gas from the tank to the solenoid valve or regulator . Element used instead of 6mm copper wire. The cable is made of high-quality plastic, resistant to mechanical damage. Compared to traditional copper tubing, it is more flexible and does not kink, allowing small radius bends in the tubing without reducing throughput.

Technical data:

• Inner diameter: 5mm
• Outer diameter: 9.5mm
• Maximum working pressure: 30bar / 400psi
• Material: plastic
• Operating temperature range: -40*C - +125*C
