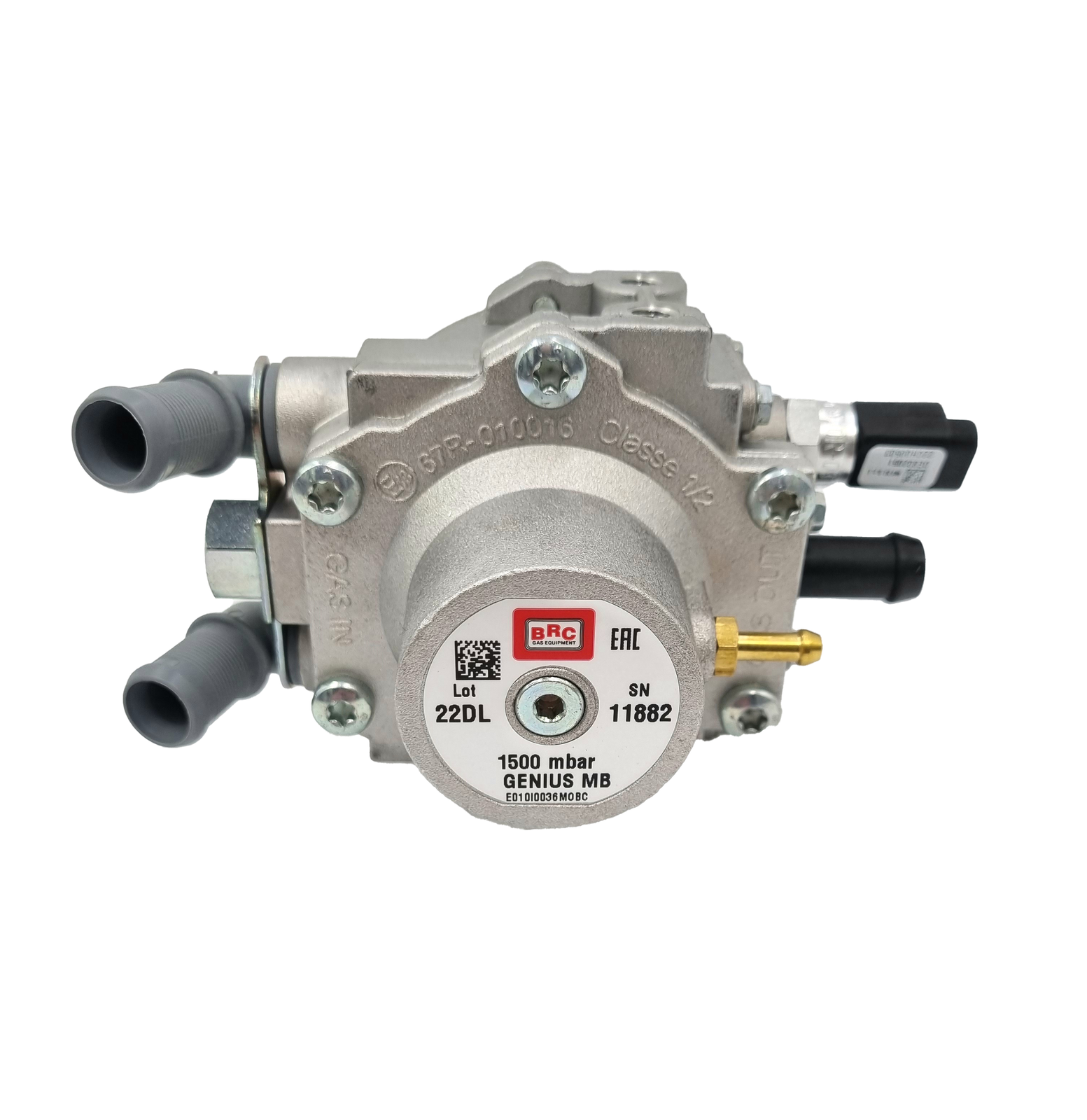

BRC reducer GENIUS MB 1500 with sensor

Reducer designed for automotive sequential gas injection system in the vapor phase. The device reduces the pressure coming from the LPG tank and causes it to go into the gaseous phase. Extremely efficient and thermally stable BRC Genius MB regulator ensures stable gas pressure even at times of rapid engine load, proper gas temperature in both urban and extra-urban traffic, proper vaporization of gas. The Genius evaporator is mainly found as part of a complete BRC Sequent 24 and 56 installation.

Technical data:

• Maximum output: 190 hp

• Working pressure: 0.9 - 1.7 bar
• Power supply: 8mm Cu copper wire or PVC equivalent
• Outside diameter of the gas exit port: 12mm
• Outer diameter of water system spigots: 16mm
• Outer diameter of the vacuum port: 5mm
• Operating temperature: -20°C ÷ 120°C
