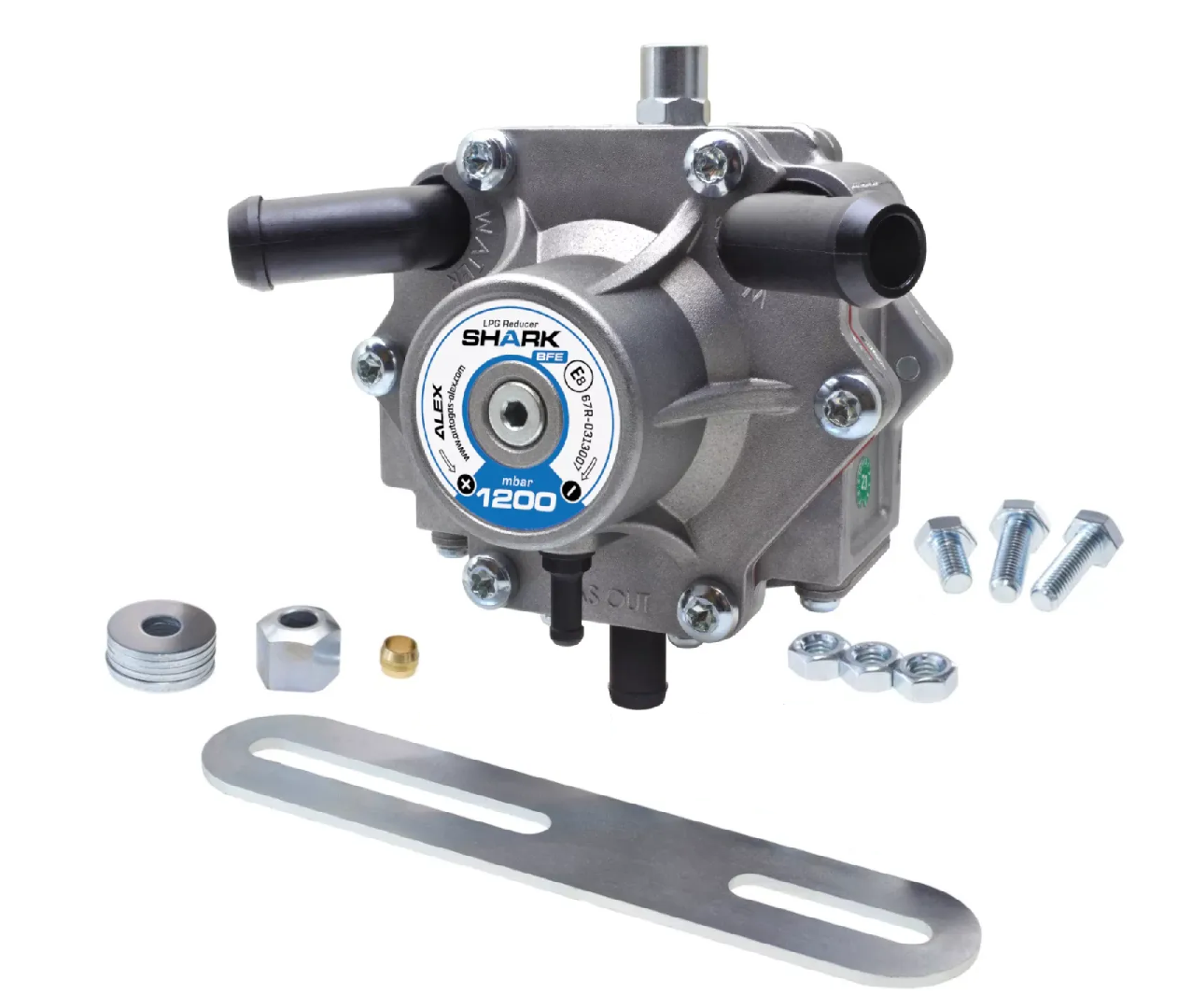

ALEX reducer SHARK 1200 BFE

Alex Shark BFE 1200 150 hp reducer. The modern design of the evaporator ensures proper functioning in harsh weather conditions, which translates into trouble-free operation of the gas system in the car. Reducer without integrated gas valve, diaphragm design ensures full efficiency and no pressure drop over the full load range and allows for two-plane mounting.

This vaporizer is one of the devices used for vaporization and pressure reduction in IV generation sequential LPG injection systems.

Technical data:

• Maximum output: 150HP

• Operating pressure: 1.0 - 1.4bar
• Power supply: Cu 6mm copper wire or PVC equivalent
• Power socket: M10x1.0
• Outside diameter of the gas exit port: 12mm
• Outer diameter of water system spigots: 16mm
• Outer diameter of the vacuum port: 5mm
• Operating temperature: -20°C ÷ 120°C
