AC reducer R02 150E with AC solenoid valve

STAG R02 single-stage diaphragm regulator is designed for automotive sequential vapor phase gas injection systems. The device reduces the pressure of the incoming LPG gas from the tank and causes it to go into the gaseous phase (vaporization).

Technical data:

• Maximum output: 150HP

• Power supply: Cu 6mm copper wire or PVC equivalent
• Power socket: M10x1.0
• Outside diameter of the gas exit port: 12mm
• Outer diameter of water system spigots: 16mm
• Outer diameter of the vacuum port: 4mm
• Temperature sensor resistance: 2.2kOhm
• Operating temperature: -20°C ÷ 120°C

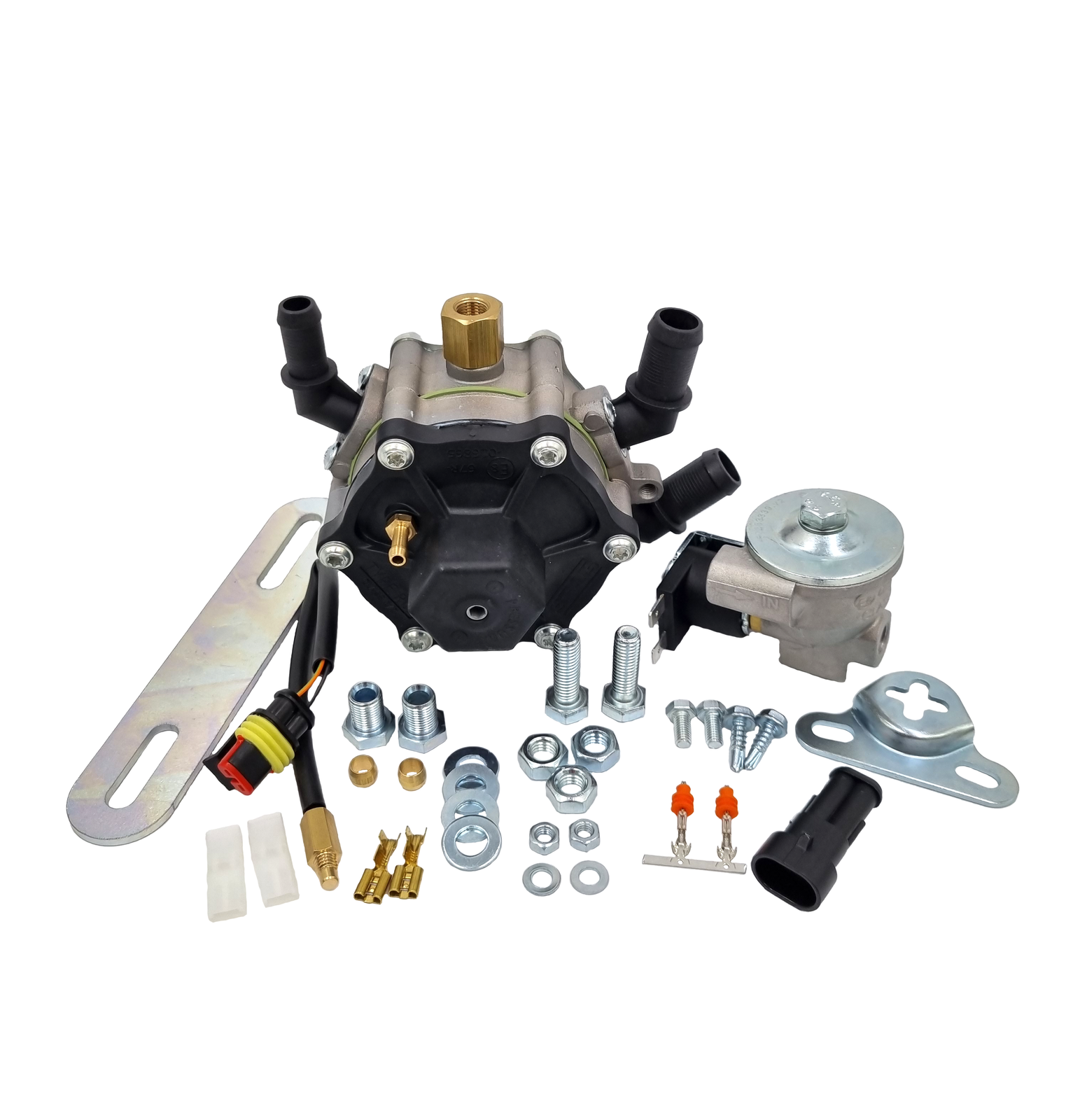

Set composition:

• Reducer
• Temperature sensor
• Gas solenoid valve 6/6
• Mounting sheet
• Small assembly components
