AC injector ACW-031 BFC 3cyl (elbows)

STAG AC W031 BFC 3cyl injector. it is designed for LPG and CNG gas injection systems, in all vehicle engines, including turbocharged ones. AC W031 BFC injector provides excellent performance, can be directly mounted at the intake manifold. An undeniable advantage of the device is that a single injector can be combined into any number of injection sections.

Advantages of AC STAG W031 injectors:

• Can be combined into sections using manifolds
• Easy and quick installation directly at the intake manifold
• Modern and refined, design that guarantees sensational performance
• High durability
• Innovative heat dissipation system thanks to the use of a coil housing in the form of a heat sink

Technical data:

• Working pressure: 0.95 - 1.5 bar
• Maximum operating pressure: 4.5 bar
• Operating temperature: -20 - +120 °C
• Opening time at 1.2 bar: 2.3 ms
• Closing time at 1.2 bar: 1.3 ms
• Coil resistance: 1.9 Ohms
• Performance: 32.6 - 57.8 hp/cyl
• Maximum flow at 1.2 bar: 145 l/min

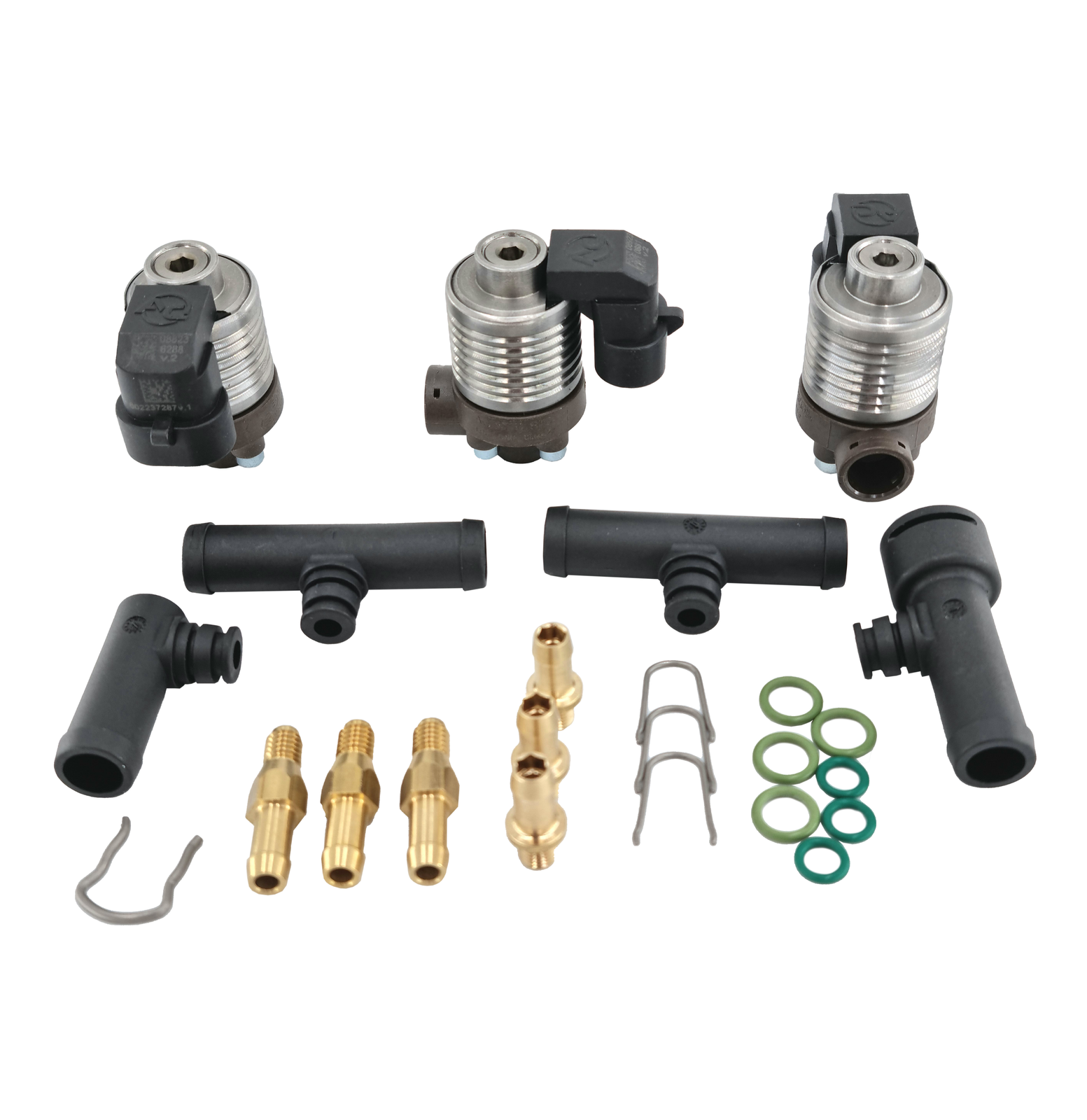

Kit composition:

• ACW-031 BFC injectors
• Intake manifold nozzles 6mm
• Injector calibration nozzles 6mm
• T-piece with 12mm stubs
• Elbow with 12mm spigot
• Map-sensor adapter with 12mm spigot
