Tomasetto toroidal multivalve 220/225 30

Multi-valve toroidal tank 220/225mm 30º MVAT0A12 TOMASETTO

APPLICATIONS:

Allows safe refueling by reducing the possibility of filling too much gas into the tank.

Designed for installation in toroidal tanks in place of the spare wheel with a height of 220 mm or 225 mm and with a 30º slope of the multi-valve seat.

Technical data:

• Input (refueling) pipe diameter: 8 mm (M12X1)
• Diameter of the output pipe (to the reducer): 6 mm (M10X1)
• Coil voltage: 12V DC
• Coil power: 11W
• Automatic refueling cutoff: 80%
• Refueling: 18 l/min at 10bar pressure

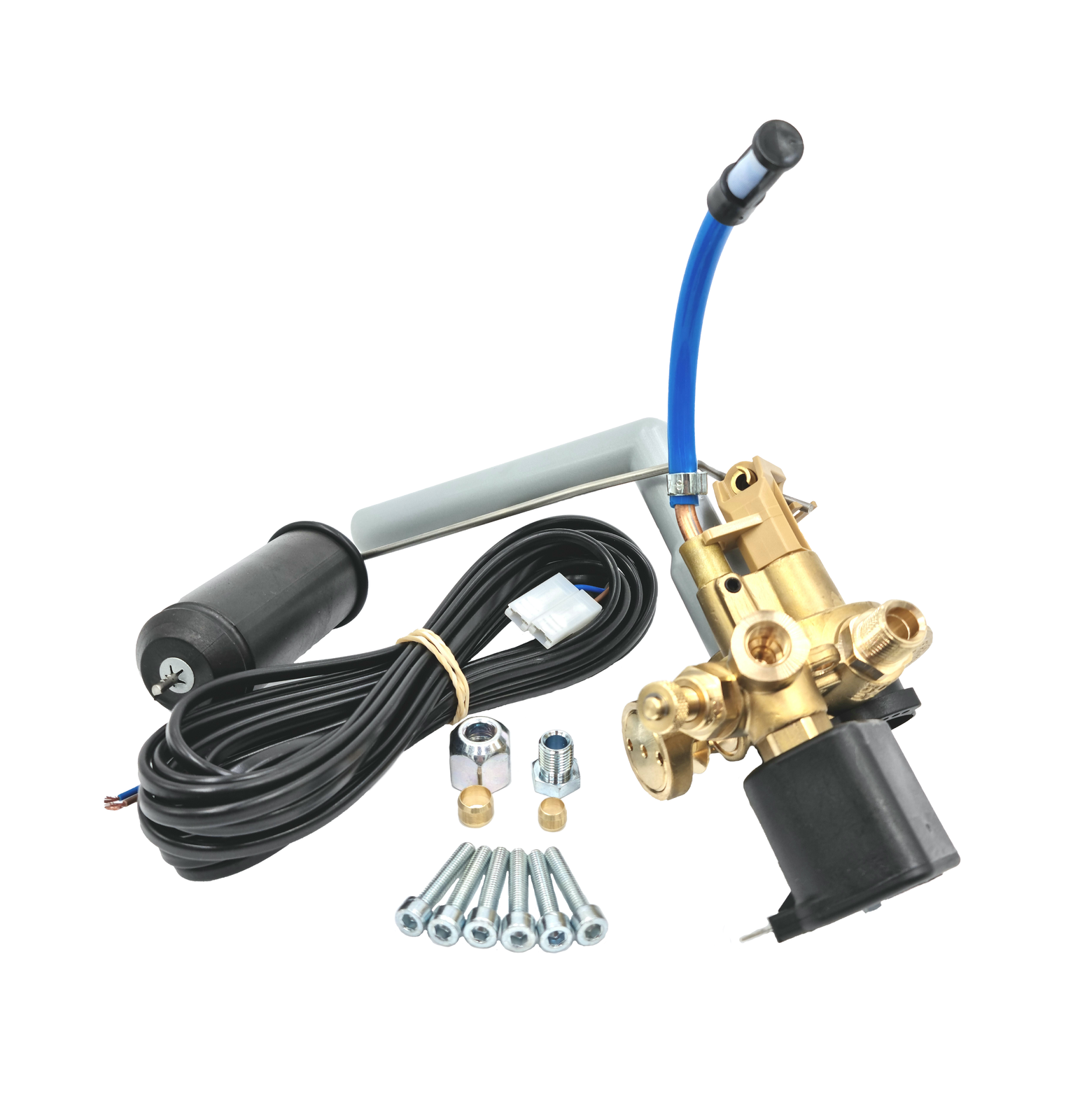

Kit contents:

• Toroidal multivalve 220/225mm - 1 piece
• Electrical cable - 1 kpl
• Mounting accessories - 1 pc
